Key Features

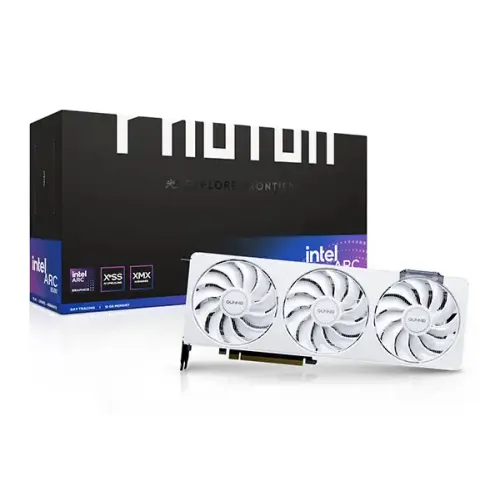

- Model: Intel Arc B580 Photon 12G OC W
- 20 Xe Cores, Memory Type: GDDR6
- Core Frequency: 2850MHz
- Memory Bandwidth: 456GB/s
- Interface: 1x HDMI 2.1, 3x DisplayPort 2.1
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 12GB | |
| Memory Clock | 2850 MHz | |
| Memory Interface | 192bit | |
| Others | 20 Xe Core | |
| Interface | ||
| Display Port | 3 x DisplayPort 2.1 | |
| HDMI | 1 x HDMI 2.1 | |
| Power Specifications | ||
| Connectors | 8 + 4-Pin | |
| Display Option | ||
| Multi Display | 4 | |
| Physical Specifications | ||
| Dimensions | 300 x 118 x 52mm | |
| Warranty | ||
| Manufacturing Warranty | 3 years | |
