Key Features

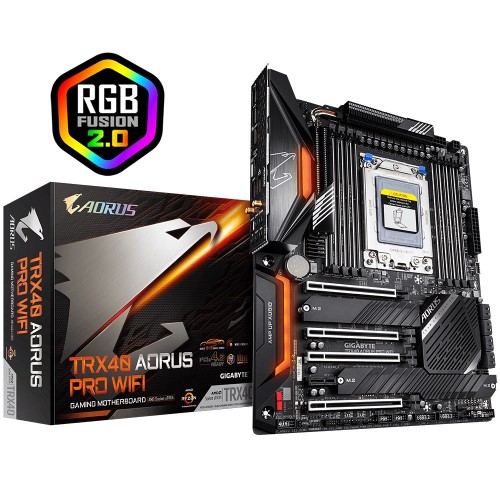

- Model: Gigabyte TRX40 AORUS PRO
- Supports 3rd Gen AMD Ryzen Threadripper Processors
- Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
- Advanced Thermal Design with Fins-Array Heatsink
- 3 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards
Specification
| Basic Information | ||
| Supported CPU | AMD Socket sTRX4: Support 3rd Generation AMD Ryzen Threadripper processors | |
| Chipset | AMD TRX40 | |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC4050H codec+ ALC1220-VB codec Support for DTS: X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 4.0 standard.) |
|
| M.2 Socket | 3 x M.2 Socket 3 connectors | |
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 8 x DDR4 DIMM sockets | |
| Supported Memory | – Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules – Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 256 GB | |
| Graphics | ||
| Graphics | Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies Support for NVIDIA Quad-GPU SLI and3-Way/2-Way NVIDIA SLI technologies |
|
| Connector & Ports | ||
| USB (s) | CPU: 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C™ port with USB 3.2 Gen 2/Gen 1 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset + 2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Intel GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| Audio | 1 x front panel audio header Realtek ALC4050H codec+ ALC1220-VB codec Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Internal I/O Ports | iTE I/O Controller Chip 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 1/Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x GIGABYTE add-in card connector 2 x temperature sensor headers 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
