Key Features
- MPN: GV-R56XTGAMING OC-6GD

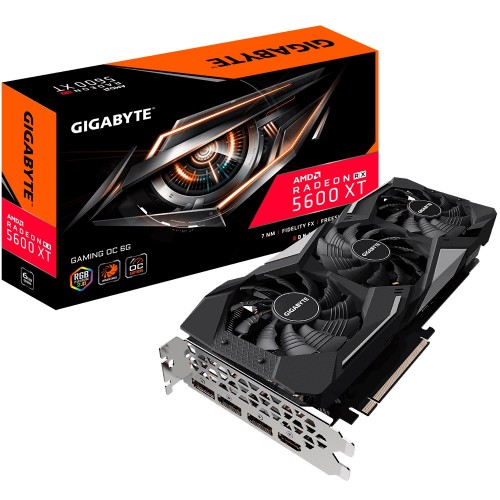

- Model: Gigabyte Radeon RX 5600 XT
- PCI Express 4.0 x16
- 6GB 192-Bit GDDR6
- WINDFORCE 3X Cooling System
- 3 x Display Port 1.4, 1 x HDMI 2.0b
Specification
| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 6GB | |
| Resolution | 7680 x 4320 @ 60 Hz | |
| Core Clock | Boost Clock : up to 1620 MHz Game Clock : 1560 MHz |
|
| Memory Clock | 12000 MHz | |
| BUS Type | 192 bit | |
| Memory Interface | PCI-E 4.0 x 16 | |
| Stream Processors | 2304 | |
| Others | Process Technology: 7 nm | |
| Interface | ||
| Display Port | 3 x DisplayPort 1.4 | |
| HDMI | 1 x HDMI 2.0b | |
| Power Specifications | ||
| Connectors | 1 x 8-pin | |
| Recommended PSU | 450W | |
| Display Option | ||
| Multi Display | up to 4 Display | |
| Application Programming Interfaces | ||
| DirectX | 12 | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | L=279.85 W=114.35 H=49.55 mm | |
| Warranty | ||
| Manufacturing Warranty | 02 Years Warranty | |
