Key Features

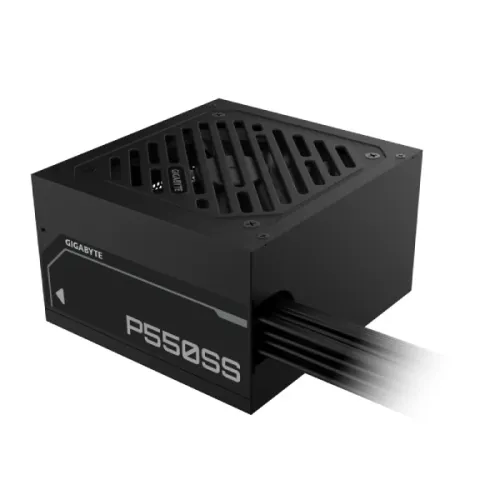

- MPN: GP-P550SS
- Model: P550SS
- Power Output Capacity: 550W, Compact design
- 80 PLUS Silver certified, Support Intel ATX 3.0 standard
- 120mm Fluid Dynamic Bearing (FDB) Fan
- OVP/OPP/SCP/UVP/OCP/OTP Protection
Specification
| Key Features | ||
| Efficiency (Approx.) | 90% at typical load (230V EU) | |
| Certification | 80 PLUS Silver | |
| Fan Size | 120mm Fluid Dynamic Bearing (FDB) fan | |
| Input | ||
| Voltage | 155-240 Vac | |
| Frequency Range | 50-60 Hz | |
| Current | 6.3A | |
| Output | ||
| Total Power | 550W | |
| Connector | ||
| Main Power | ATX/MB 20+4 Pin x 1 : 600mm*1 | |
| CPU | CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1 | |
| PCI-E | PCI-e 6+2 Pin x 2 : 600mm*2 | |
| SATA | SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1 SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1 |
|
| Warranty Information | ||
| Manufacturing Warranty | 03-Years | |
