Key Features
- MPN: GV-N5080WF3OC-16GD

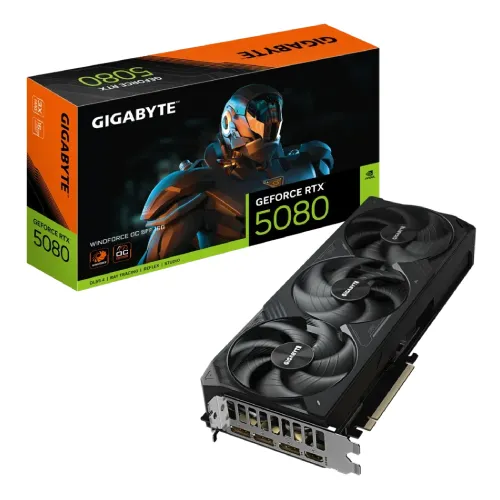

- Model: GeForce RTX 5080 WINDFORCE OC SFF 16G
- Core clock: 2670 MHz (Reference: 2617 MHz)
- Memory Clock 30 Gbps
- CUDA Cores: 10752
- Output: DP 2.1b x3, HDMI 2.1b x 1
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 16GB | |
| Resolution | Max 7680 x 4320 | |
| Core Clock | 2670 MHz (Reference: 2617 MHz) | |
| Memory Clock | 30 Gbps | |
| BUS Type | PCI-E 5.0 | |
| Memory Interface | 256-bit | |
| CUDA Cores | 10752 | |
| Interface | ||
| Display Port | 3 x DisplayPort 2.1a | |
| HDMI | 1 x HDMI 2.1b | |
| Power Specifications | ||
| Connectors | 1 x 16-pin | |
| Recommended PSU | 850W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | DirectX 12 API | |
| OpenGL | OpenGL 4.6 | |
| Physical Specifications | ||
| Dimensions | L=304 W=126 H=50 mm | |
| Warranty | ||
| Manufacturing Warranty | 3 years Warranty | |
