Key Features
- MPN: GV-N5070EAGLE OC-12GD

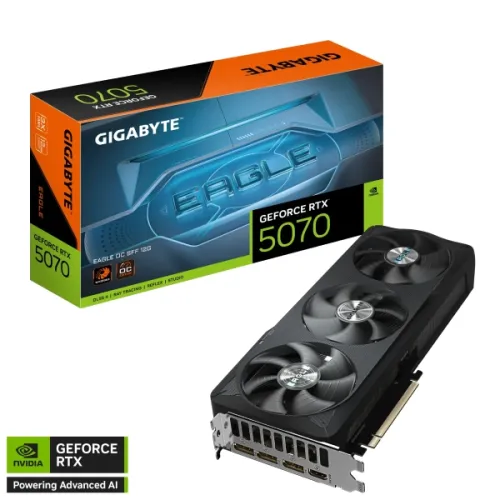

- Model: GeForce RTX 5070 EAGLE OC SFF 12G
- Video Memory: 12GB GDDR7, PCI Express 5.0
- Core Clock: 2587 MHz (Reference card : 2512 MHz)
- CUDA Cores: 6144, Memory Clock: 28 Gbps
- Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 12GB | |
| Resolution | 7680×4320 | |
| Core Clock | 2587 MHz (Reference card: 2512 MHz) | |
| Memory Clock | 28 Gbps | |
| BUS Type | 192 bit | |
| Memory Interface | PCI-E 5.0 | |
| CUDA Cores | 6144 | |
| Others | Powered by the NVIDIA Blackwell architecture and DLSS 4 WINDFORCE cooling system Hawk fan Server-grade Thermal conductive gel NVIDIA SFF-ready RGB Lighting Reinforced structure Fifth-Gen Tensor Cores Max AI performance with FP4 and DLSS 4 New Streaming Multiprocessors Optimized for neural shaders Fourth-Gen Ray Tracing Cores Built for Mega Geometry |
|
| Interface | ||
| Display Port | DisplayPort 2.1b x3 | |
| HDMI | HDMI 2.1b x1 | |
| Power Specifications | ||
| Connectors | 16 Pin*1 | |
| Recommended PSU | 750W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | DirectX 12 API | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | L=290 W=120 H=50 mm | |
| Others | PCB Form: ATX | |
| Warranty | ||
| Manufacturing Warranty | 3 Years | |
