Key Features
- MPN: GV-N506TWF2OC-8GD

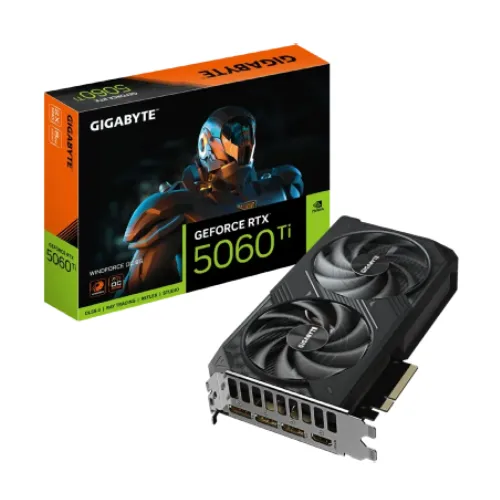

- Model: GeForce RTX 5060 Ti WINDFORCE OC 8G
- Video Memory: 8GB GDDR7, PCI Express 5.0
- CUDA Cores: 4608 Units, Memory Speed: 28 Gbps
- Core Clocks: 2587 MHz
- Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 8GB | |
| Resolution | 7680 x 4320 | |
| Core Clock | 2587 MHz (Reference card :2572 MHz) | |
| Memory Clock | 28 Gb/s | |
| BUS Type | 128 bit | |
| Memory Interface | PCI Express 5.0 | |
| CUDA Cores | 4608 | |
| Interface | ||
| Display Port | DisplayPort 2.1b x 3 | |
| HDMI | HDMI 2.1b x 1 | |
| Power Specifications | ||
| Connectors | 8 pin x1 | |
| Recommended PSU | 650W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | L=208 W=120 H=40 mm | |
| Others | PCB Form: ATX | |
| Warranty | ||
| Manufacturing Warranty | 3 years | |
