Key Features
- MPN: GV-N506TWF2-16GD

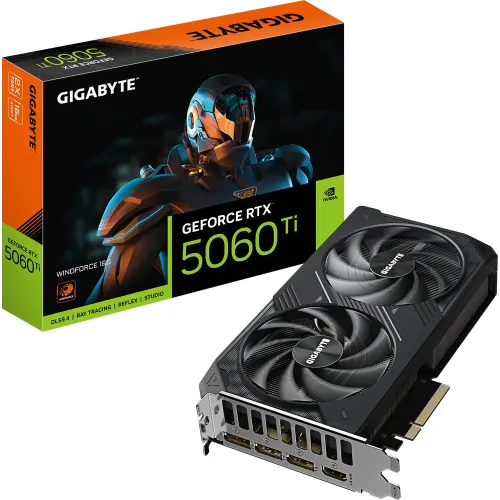

- Model: GeForce RTX 5060 Ti 16GB WINDFORCE
- Core clock: 2572 MHz
- Memory Clock: 28 Gb/s
- CUDA Cores: 4608
- Output: DisplayPort x3 (2.1b), HDMI x1 (2.1b)
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 16GB | |
| Resolution | 7680 x 4320 | |
| Core Clock | Base Mode: 2572 MHz | |
| Memory Clock | 28 Gb/s | |
| BUS Type | 128 bit | |
| Memory Interface | PCI Express 5.0 x16 | |
| CUDA Cores | 4608 | |
| Interface | ||
| Display Port | DisplayPort 2.1b x 3 | |
| HDMI | HDMI 2.1b x 1 | |
| Power Specifications | ||
| Connectors | 8 pin x1 | |
| Recommended PSU | 650W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| DirectX | 12 Ultimate | |
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | L=208 W=120 H=40 mm | |
| Others | PCB Form: ATX | |
| Warranty | ||
| Manufacturing Warranty | 3 years | |
