Key Features

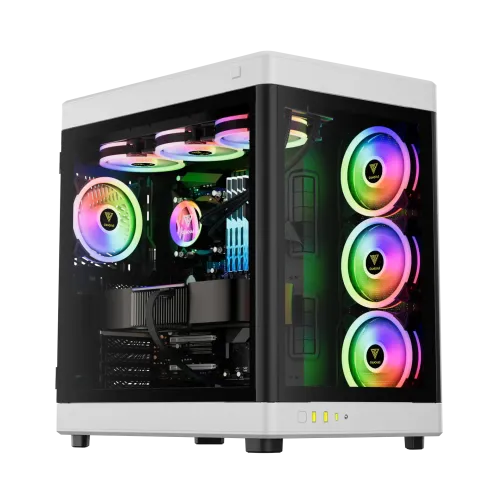

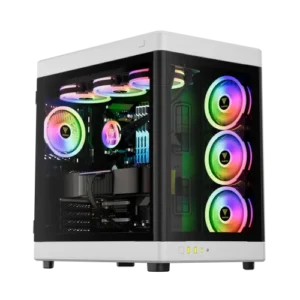

- Model: NESO P1 BW
- Motherboard Support: EATX, ATX, Micro-ATX, Mini-ITX
- Front and Side Panoramic Tempered Glass Panels Swing Open
- Supports Radiators up to 360mm, and 420mm Side
- Dual-chamber Chassis
Specification
| Case Type | ||
| Type | FULL Tower | |
| Tempered Glass Panel | Front, Left | |
| Motherboard Support | EATX, ATX, Micro-ATX, Mini-ITX | |
| External Features | ||
| Color(s) | Black White | |
| Material | SPCC & ABS & Tempered glass | |
| Weight | 11.97 kg / 26.38 lb | |
| Dimensions | 490 x 310 x 495 mm | |
| Expansion Slots | 8 to 8 | |
| Radiator Support | Top: 360mm, 280mm / Side: 360mm, 420mm / Rear: 120mm | |
| Fan Support | Top: 3 x 120mm, 2 x 140mm / Side: 3 x 120mm, 3 x 140mm / Rear: 1 x 120mm / Bottom: 3 x 120mm | |
| Pre- Installed Fans | N/A | |
| Drive Bays | 2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 2 x 2.5″(HDD Cage) + 3 x 2.5” (SSD Bracket) |
|
| I/O Port | USB 3.0 x2, Type C x 1, HD Audio x1, LED Control x1 | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 193mm | |
| Maximum Graphics Card Length | VGA length:426mm VGA width: 192mm |
|
| Maximum PSU Length | 180mm | |
| Warranty | ||
| Warranty | No Warranty | |
