Key Features

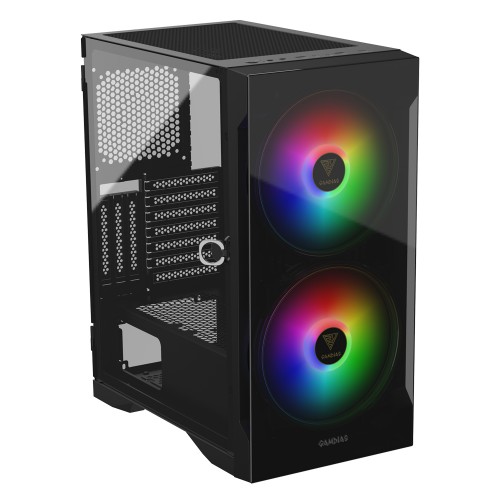

- Model: APOLLO E2 Elite
- Side Swing Magnetic Closing Tempered Glass Window
- Trapezoidal Tempered Glass Panel
- 2 Built-in 200mm ARGB Fans
- 3 Slot Vertical VGA Slot
Specification
| Case Type | ||
| Type | Mid Tower | |
| Tempered Glass Panel | Side Swing Magnetic Closing Tempered Glass Window | |
| Motherboard Support | mini-ITX, micro-ATX, ATX | |
| External Features | ||
| Color(s) | Black | |
| Dimensions | 392 x230 x 467 mm | |
| Front Ports | USB 3.0 x1, USB 2.0 x2, HD Audio x1, LED Control x1 | |
| Expansion Slots | 7+3 | |
| Radiator Support | Top:280 mm, 240mm Front:360 mm, 280mm Rear:140 mm, 120mm |
|
| Fan Support | Top: 2 x 120mm , 2 x 140mm Front: 3 x 120mm , 2 x 140mm，2 x200mm Rear: 1 x 120mm , 1 x 140mm |
|
| Pre- Installed Fans | Front: 2 x 200mm ARGB Fans Rear: 1 x 120mm Fan |
|
| Drive Bays | 2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 3 x 2.5″ |
|
| Additional Feature | ||
| PSU | 180mm | |
| Side Panel | Tempered Glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 190mm | |
| Maximum Graphics Card Length | 340mm | |
| Warranty | ||
| Warranty | No Warranty | |
