Key Features

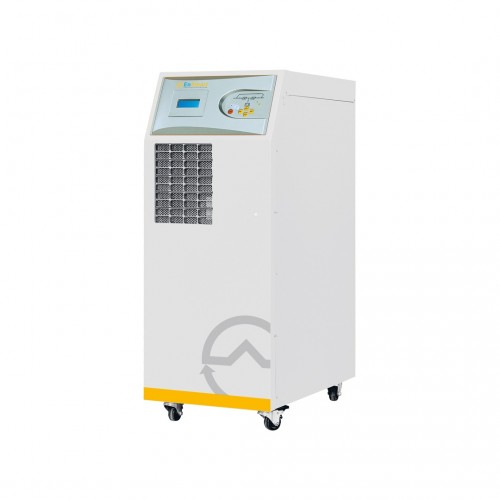

- Model: Smart BX 3:3 30kVA
- Capacity: 30 KVA
- IGBT PWM Rectifier & Inverter Technology
- System Voltage: 372± VDC (62 Units)
- Transformerless (HF)
Specification
| Main Feature | ||
| Capacity | 30kVA | |
| Noise Level | < 65 dBA | |
| Input Features | ||
| Frequency | 50-60 Hz + 10% (Selectable) | |
| Power Factor | > 0.99 | |
| Voltage Range | 380/400/415 VAC 3P+N (Optional 220/380 VAC -37% +22% 3P+N+PE) | |
| Output Features | ||
| Voltage Range | 380/400/415 VAC 3P+N | |
| Power Factor | 0.9 | |
| Type of Wave | Pure Sinewave | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |
