Key Features
- MPN: 3831109900000

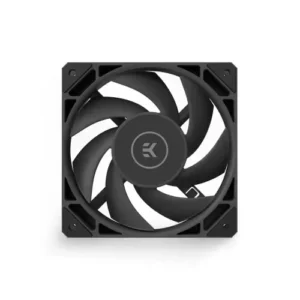

- Model: EK-Loop FPT 120mm
- Fan Connector: 4-pin PWM
- Max Air Flow: 77,00 CFM = 130,82 m³/h
- Shaft bearing: FDB (fluid dynamic bearing)
- Noise Level: 36,00 dBA (max. RPM)
Specification
| Key Features | ||
| Fan Speed | 550 – 2300 RPM | |
| Air Flow | 77,00 CFM = 130,82 m³/h | |
| Air Pressure | 2,7 mm H20 = 26,81 Pa | |
| Noise (dBA) | 36,00 dBA (max. RPM) | |
| Lifespan | 60000 hrs@ 25℃ | |
| Bearing Type | FDB (fluid dynamic bearing) | |
| Input Current | ||
| Operating Voltage/Power Range | 12V DC | |
| Physical Specification | ||
| Color | Black | |
| Size | 120 x 120 x 27mm | |
| Connector | 4-pin PWM header | |
| Warranty Information | ||
| Manufacturing Warranty | 02-year warranty | |
