Key Features

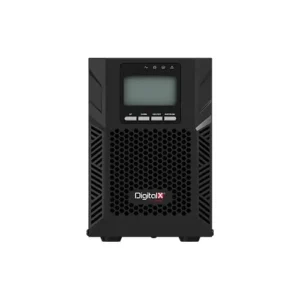

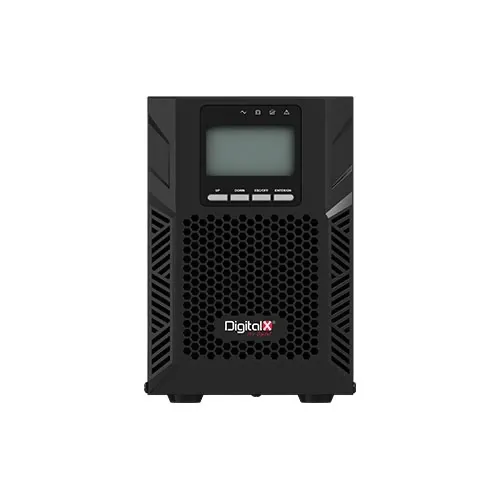

- Model: MP910S
- Capacity: 1000VA
- Load Capacity: 800W
- Output Voltage (V): 208/220/230/240Vac
- ECO mode, overload and short circuits protection
Specification
| Main Feature | ||
| Capacity | 1000VA | |
| Display Type | LCD | |
| Load Capacity | 800W | |
| Input Voltage | 110～300Vac (176～264Vac @ 100% load) | |
| Output Voltage | 208/220/230/240Vac | |
| Frequency (Battery Mode) | (50/60±0.1%)Hz | |
| Battery | 3 Battery with 12V / 8.2Ah | |
| Others | LED Display: Line mode, Bat. mode, ECO mode, Bypass mode, Battery low voltage, Overload & UPS fault LCD Display: Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature, and remaining battery backup time Frequency Range: 40～70Hz (50/60Hz Auto-Sensing) Backup Time (50% Load): 12Min (Full Load): 5Min Charge time: 4 hours (To 90% of full capacity) Efficiency (Approx.): AC Mode / Line Mode: 88% Battery Mode: 85% |
|
| Input Features | ||
| Power Factor | 208/220/230/240Vac | |
| Voltage Range | 110～300Vac (176～264Vac @ 100% load) | |
| Output Features | ||
| Voltage Range | 208/220/230/240Vac | |
| Power Factor | 0.9 | |
| Type of Wave | Pure Sinewave | |
| Physical Specification | ||
| Dimension | 144 x 293 x 209mm | |
| Manufacture Warranty | ||
| Warranty | 01-Year | |
