Key Features

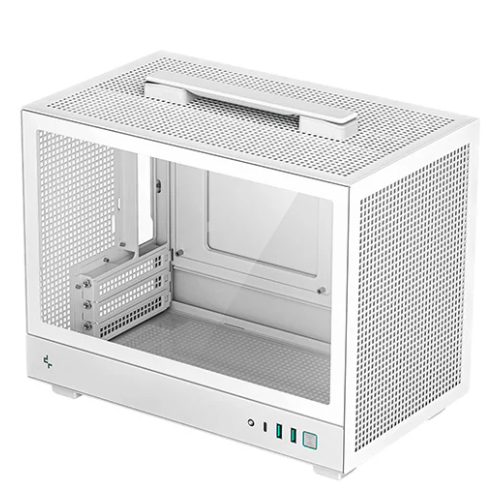

- Model: CH160 WH
- Motherboard Support: Mini-ITX
- Expansion Slots: 3 Slots
- Front I/O Ports: USB3.0×2, Audio×1, Gen2 Type-C×1
- Materials: ABS+SPCC+Tempered Glass
Specification
| Case Type | ||
| Tempered Glass Panel | yes | |
| Motherboard Support | Mini-ITX | |
| External Features | ||
| Color(s) | White | |
| Material | ABS+SPCC+Tempered Glass | |
| Weight | 3.3Kg | |
| Dimensions | 336×200×283.5mm(L×W×H) | |
| Front Ports | USB3.0×2, Audio×1, Gen2 Type-C×1 | |
| Expansion Slots | 3 Slots | |
| Fan Support | Front: 1×120 mm（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） Top: 2×120mm Rear: 1×120mm |
|
| Drive Bays | 3.5″ Drive Bays: 1x 2.5 SSD / 3.5 HDD / Front 120 FAN : Choose one of the three） 2.5″ Drive Bays: 1x 2.5 SSD / 3.5 HDD / Front 120 FAN : Choose one of the three） |
|
| Additional Feature | ||
| PSU | ATX PS2 | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 172mm | |
| Maximum Graphics Card Length | Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
|
| Maximum PSU Length | maximum length: 140mm）/ SFX / SFX-L | |
| Warranty | ||
| Warranty | No Warranty | |
