Key Features

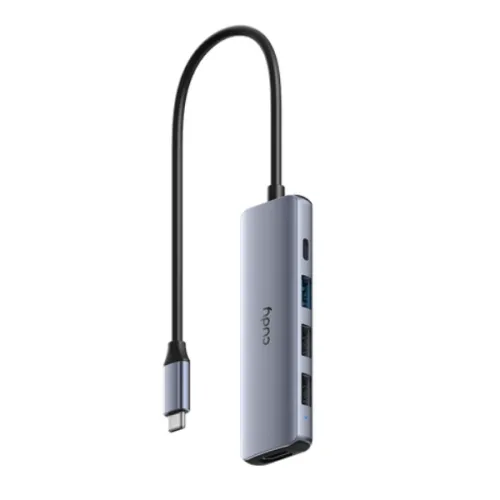

- Model: UH405
- Upstream Ports: 1× USB-C 3.2 Gen 1 Male Connector (5 Gbps)
- Output Ports: 1× HDMI 1.4, 1× USB-A 3.2, 2× USB-A 2.0, 1× USB-C
- Resulation Supports: 4K 30 Hz, 2K 60 Hz, FHD 120 Hz
- Output Power: 100W Power Delivery
Specification
| Basic Information | ||
| Input Interface | 1× USB-C 3.2 Gen 1 Male Connector (5 Gbps) | |
| Output Interface | 1× HDMI 1.4 1× USB-A 3.2 Gen 1 Port (5 Gbps) 2× USB-A 2.0 Ports 1x USB-C Port |
|
| Transmission Rate | Up to 5 Gbps | |
| Supported Resolution | 4K (4096×2160) 30 Hz 2K (2560×1440) 60 Hz 1080P (1920×1080) 120 Hz |
|
| Power Supply | 100W if powered by a PD Adapter 5W if powered by the host client’s USB Power |
|
| Supported System | Windows 7 or later macOS 10.12 or later Ubuntu LTS 18.04 or later Android 5 or higher iPadOS iOS |
|
| Physical Specification | ||
| Material | Aluminum ABS |
|
| Color | Silver Gray | |
| Dimension | 103×32×11 mm 4.06×1.26×0.43 inches |
|
| Weight | 51 g (1.8 oz.) | |
| Cable Length | 250 mm 9.84 inches |
|
| Warranty | ||
| Warranty | 1 Years | |
