Key Features

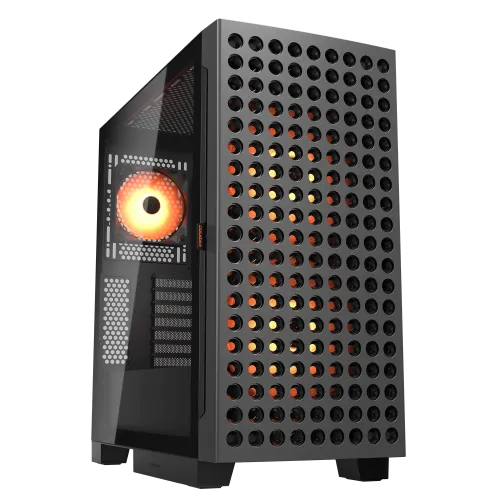

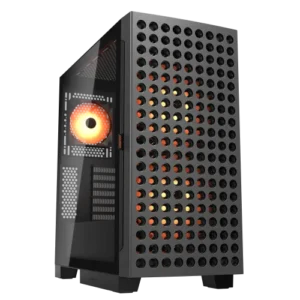

- Model: Airface ECO RGB
- Case Form Factor: Mid Tower
- Motherboard Support: Mini ITX / Micro ATX / ATX / CEB / E-ATX
- Pre Installed Fans: 2 x 180mm ARGB, 1x 120mm ARGB
- Max GPU Length: 390mm, CPU Cooler Height: 190mm
Specification
| Case Type | ||
| Type | Mid Tower | |
| Tempered Glass Panel | Side Panel | |
| Motherboard Support | Mini ITX / Micro ATX / ATX / CEB / E-ATX | |
| External Features | ||
| Color(s) | Black | |
| Dimensions | 240(W) x 509(H) x 480(D) (mm) 9.4(W) x 20(H) x 18.9(D) (in) |
|
| Expansion Slots | 7 | |
| Radiator Support | up to 360mm | |
| Fan Support | Front: 120mm x 3 / 140mm x 2 / 180mm x 2 Top: 120mm x 3 / 140mm x 2 Rear: 120mm x 1 / 140mm x 1 |
|
| Pre- Installed Fans | Front: 180mm ARGB PWM fan x 2 Rear: 120mm ARGB fan x 1 Speed: 180mm ARGB PWM fan : 300-1200 ± 10% RPM 120mm ARGB fan : 1000 ± 10% RPM Connector: 180mm ARGB PWM fan Connector: 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) 120mm ARGB fan Connector: 5V 3 Pin (ARGB) / 3 Pin (Fan) |
|
| Drive Bays | 3.5″ Drive Bay: 2 2.5″ Drive Bay: 2 (2 SSD trays included) |
|
| I/O Port | USB 3.2 Gen 2 Type-C x 1 USB 3.0 Type-A x 2 4-Pole Headset Audio Jack x 1 RGB Button |
|
| Others | Vertical GPU Support RGB Sync with M/B |
|
| Additional Feature | ||
| Cooling System | Water Cooling Support Front: 360mm / 280mm / 240 mm / 140 mm / 120mm Top: 360mm / 280mm / 240 mm / 140 mm / 120mm Rear: 140 mm / 120mm |
|
| Side Panel | 4mm Tempered Glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 190 (mm) / 7.5 (in) | |
| Maximum Graphics Card Length | 390(mm) / 15.4(in) | |
| Maximum PSU Length | 200(mm) / 7.9(in) | |
| Warranty | ||
| Warranty | No Warranty | |
