Key Features
- MPN: MPE-8501-AFAAG-IN

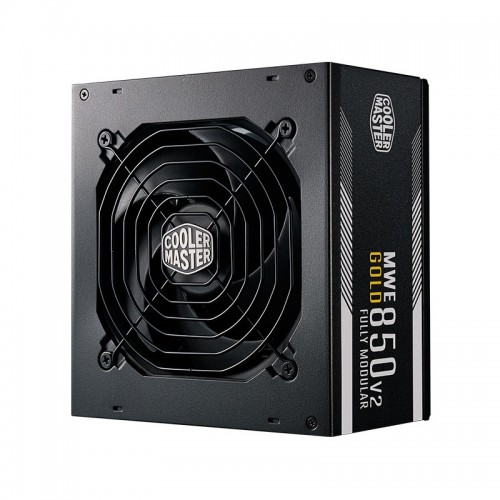

- Model: MWE Gold 850 V2 Full Modular 850W 80 Plus Gold
- 80 Plus Gold Efficiency, 2 EPS Connectors
- 120mm HDB Fan
- High Temperature Resilience
- Full Modular Cabling
Specification
| Key Features | ||
| Efficiency (Approx.) | 90% @ Typical Load | |
| Certification | 80 PLUS Gold certification, | |
| Fan Size | 120mm | |
| Others | FAN Bearing: HDB FAN Speed: 1500 RPM ATX Version: ATX 12V Active PFC Dimensions (L X W X H): 160 x 150 x 86 mm Noise Level @ 20%: 0 dBA Noise Level @ 50%: 17.8 dBA Noise Level @ 100%: 25.9 dBA ERP 2014 LOT 3 Operating Temperature: 0-50°C HOLD UP TIME: >16ms at 100% Load MTBF: >100,000 Hours PROTECTIONS: OVP, OPP, OTP, SCP, OCP, UVP REGULATORY: TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI Wattage: Above 750W |
|
| Input | ||
| Voltage | 90-264V | |
| Frequency Range | 47-63Hz | |
| Current | 12-6A | |
| Output | ||
| Modular Type | Full Modular | |
| Total Power | 80 PLUS Gold power Power Good Signal: 100 – 150 ms |
|
| Connector | ||
| Main Power | EPS 4+4 PIN CONNECTORS x 1 EPS 8 PIN CONNECTOR x 1 |
|
| CPU | ATX 24-PIN CONNECTORS x 1 | |
| PCI-E | PCI-E 6+2 PIN CONNECTORS x 4 | |
| SATA | 12 | |
| Warranty Information | ||
| Manufacturing Warranty | 05 years warranty | |
