Key Features
- MPN: MLX-D24M-A25PZ-R1

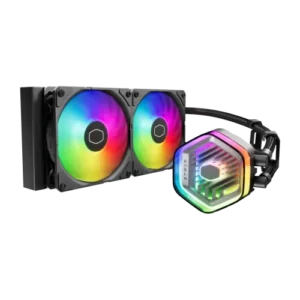

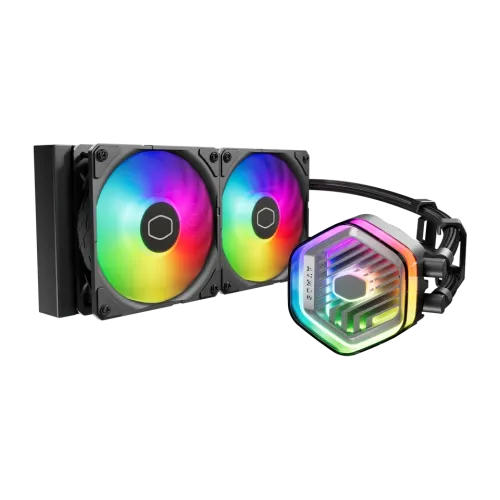

- Model: MasterLiquid 240 Atmos
- Fan Speed: 690-2500 RPM ± 10%
- Fan Bearing Type: Loop Dynamic Bearing
- Pump MTTF: >210,000 Hours
- Fan Power Connector: 4-Pin (PWM)
Specification
| Key Features | ||
| Type | Liquid CPU Cooler | |
| Fan Speed | 690-2500 RPM ± 10% | |
| Fan Airflow | 70.7 CFM (Max) | |
| Noise | Pump Noise Level: 25 dBA (Max) Fan Noise Level: 27.2 dBA (Max) |
|
| Air Pressure | 3.61 mmH₂O (Max) | |
| Connector | Fan Power Connector: 4-Pin (PWM) Power Connector: 3-Pin |
|
| Material | Aluminum | |
| Others | Fan LED Type: ARGB Fan Bearing Type: Rifle Bearing Fan MTTF: >160,000 Hours |
|
| Physical Specification | ||
| Dimension | Radiator Dimensions: 277 x 119.6 x 27.2 mm / 10.9 x 4.7 x 1.1 inch Pump Dimensions: 84.9 x 81 x 53.15 mm / 3.3 x 3.2 x 2.1 inch Fan Dimensions (L x W x H): 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
|
| Supported Sockets | ||
| Intel | LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 | |
| AMD | AM5 / AM4 | |
| Warranty Information | ||
| Warranty | 03-year warranty | |
