Key Features
- MPN: MB520-WGNN-S00

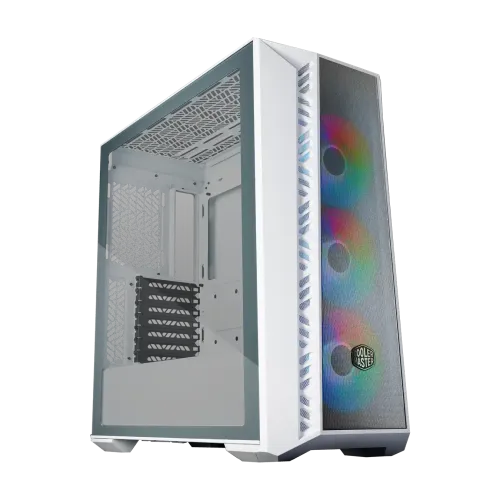

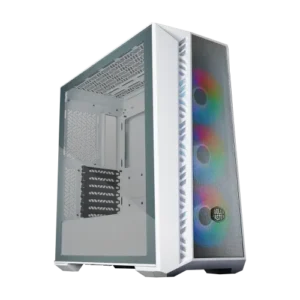

- Model: MasterBox 520 Mesh
- Type: Mid Tower
- Motherboard Support: Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX
- Materials: Mesh, Steel, ABS Plastic, Tempered Glass
- Pre-Installed Fans: 3x CF120 ARGB Front
Specification
| Case Type | ||
| Type | Mid Tower | |
| Tempered Glass Panel | Yes | |
| Motherboard Support | ITX, Micro ATX, ATX, SSI CEB, E-ATX | |
| External Features | ||
| Color(s) | White | |
| Material | Mesh, Steel, ABS Plastic, Tempered Glass | |
| Dimensions | 499 x 210 x 498mm | |
| Expansion Slots | 7 | |
| Radiator Support | Top: 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm); Front: 120mm, 140mm, 240mm, 280mm, 360mm; Rear: 120mm | |
| Fan Support | Top: 3x 120mm, 2x 140mm Front: 3x 120mm, 2x 140mm Rear: 1x 120mm |
|
| Pre- Installed Fans | Front: 2 x 120mm Rare: 1x 120mm |
|
| I/O Port | 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button | |
| Additional Feature | ||
| PSU | Not Included | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 165mm | |
| Maximum Graphics Card Length | 410mm | |
| Maximum PSU Length | 200mm | |
| Warranty | ||
| Warranty | No Warranty | |
