Key Features
- MPN: RR-H103-22PB-R1

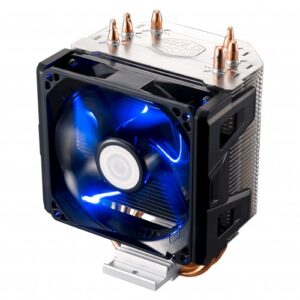

- Model: Hyper 103
- Fan Air Pressure: 0.35 – 2.63 mmH2O
- Fan Air Flow: 15.7 – 43.1 CFM
- Fan Noise Level: 17 – 30 dBA
- Fan Speed: 800-2200 RPM
Specification
| Key Features | ||
| Type | Air Cooler | |
| Fan Speed | 800-2200 RPM (PWM) ± 10% | |
| Fan Airflow | 15.7 – 43.1 CFM ± 10% | |
| Noise | 17 – 30 dBA | |
| Air Pressure | 0.35 – 2.63 mmH2O ± 10% | |
| Connector | 4-Pin (PWM) | |
| Material | HEAT SINK MATERIAL: 3 Continuous Direct Contact Heat Pipes, Aluminum Fins | |
| Physical Specification | ||
| Dimension | DIMENSIONS: 108 x 89.5 x 138.5 mm HEAT SINK DIMENSIONS: 96 x 61 x 138.5 mm FAN DIMENSIONS: 92 x 92 x 25 mm |
|
| Weight | HEAT SINK WEIGHT: 500g FAN WEIGHT: 80g |
|
| Supported Sockets | ||
| Intel | LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, LGA775 | |
| AMD | AM3, AM3+, AM2, FM2+, FM2, FM1 | |
| Warranty Information | ||
| Warranty | 01 Year | |
