Key Features

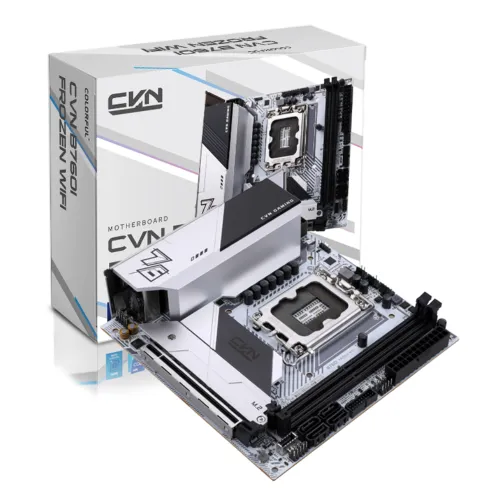

- Model: CVN B760I FROZEN WIFI V20
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 64GB 4800(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: RTL8125 2.5Gbit network card, WiFi 6 wireless
Specification
| Basic Information | ||
| Supported CPU | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor | |
| Chipset | Intel B760 | |
| BIOS | 128M UEFI, supporting multiple languages | |
| Form Factor | ITX 170mm x 170mm |
|
| Audio | 5.1 Channel sound card | |
| Expansion Slots | ||
| PCI | 1 PCIe 5.0 x16 slot | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 | |
| Supported Memory | – support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory – support Intel Extreme Memory Profile (XMP) memory technology – supports dual channel memory technology |
|
| Maximum Memory | up to 64 GB of memory (a single socket can support up to 32 GB of memory) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort | |
| LAN Port (s) | RTL8125 2.5Gbit network card | |
| Wireless Communication module | AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2 | |
| Supported Storage | A total of 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices – M.2_ 1 slot: support 2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) – M.2_ 2 slots: support 2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| RAID | See the official BIOS user guide of Colorful for the steps to create a RAID disk array | |
| Internal I/O Ports | Rear I/O interface: – 4 USB 2.0 interfaces – 2 USB 3.2 Gen 1 Type-A interfaces – 1 USB 3.2 Gen 1 Type-C interface – 1 DP 1.2 interface, supporting up to 4K 60Hz resolution – 1 HDMI 2.0 interface, Up to 4K 60Hz resolution – 1 2.5G network interface – 2 Wi-Fi 6 antenna interfaces – 3 audio interfaces (audio input/audio output/microphone) – 1 clear CMOS button On board device interface: – 1 CPU fan pin – 1 system fan pin – 1 water-cooled pump pin – 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces – 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces – 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface – 1 5V 3-pin ARGB pin – 1 front audio pin – 1 front panel pin – 1 speaker pin |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
