Key Features

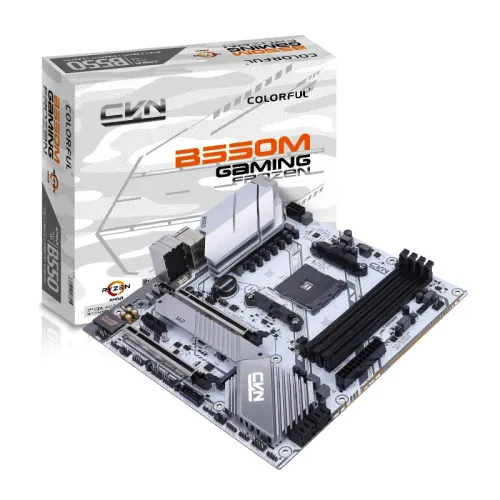

- Model: CVN B550M GAMING FROZEN V15
- Supported CPU: AMD Socket AM4 and 3rd Gen Ryzen processors
- Supported Memory: 2 x DDR4 3600(OC) Max. 32GB
- Graphics Output: 1 x HDMI, 1×HDMI 1.4
- Features: RTL8125 2.5Gbit LAN
Specification
| Basic Information | ||
| Supported CPU | Supports AMD Socket AM4 and 3rd Generation AMD Ryzen processors | |
| Chipset | AMD B550 | |
| BIOS | 128M UEFI | |
| Form Factor | M-ATX 245 x 245 mm |
|
| Audio | 8-Channel High Definition audio CODEC | |
| Expansion Slots | ||
| PCI | 1xPCI Express 3.0×4 slot 1xPCI Express3.0x1 2xM.2 slots |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DIMM | |
| Supported Memory | DDR4-4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133 MHz | |
| Connector & Ports | ||
| HDMI | 1×HDMI | |
| LAN Port (s) | 1000M LAN， Provides 10/100/1000Mb Ethernet | |
| Supported Storage | 4*SATA3.0 6Gb/s ports | |
| Internal I/O Ports | IO: 1xPS2 2xUSB2.0 1xHDMI 1xDVI 4xUSB3.1 GEN1（3xTYPE-A & 1xTYPE-C) 1xRJ45 1000M LAN, 1x6audio ports Onboard： 1xCOM, 2xUSB2.0, 1xUSB3.1 GEN1 TYPE-A |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
