Key Features

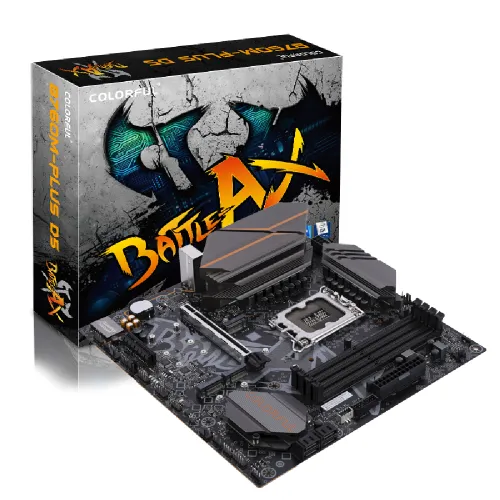

- Model: BATTLE-AX B760M-PLUS D5 V20
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 192GB 6800(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: RTL8125 2.5Gbit network card
Specification
| Basic Information | ||
| Supported CPU | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor | |
| Chipset | Intel B760 | |
| BIOS | 128M UEFI, supporting multiple languages | |
| Form Factor | M-ATX 245mm x 245mm |
|
| Audio | 5.1 Channel sound card | |
| Expansion Slots | ||
| PCI | 1xPCIe 5.0 x16 slot 1xPCIe 3.0 x4 slot |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | – DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory – Intel is supported Extreme Memory Profile (XMP) memory technology – supports dual channel memory technology |
|
| Maximum Memory | up to 192 GB of memory (a single socket can support up to 48 GB of memory) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI 2.0 interface, Up to 4K 60Hz resolution 1 x DP 1.2 interface, supporting up to 4K 60Hz resolution |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort | |
| LAN Port (s) | RTL8125 2.5Gbit network card | |
| Supported Storage | A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, – M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) – M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) – M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| RAID | Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices | |
| Internal I/O Ports | Rear I/O interface: – 4 USB 2.0 interfaces – 2 USB 3.2 Gen 1 Type-A interfaces – 1 USB 3.2 Gen 2 Type-C interface – 1 DP 1.2 interface, supporting up to 4K 60Hz resolution – 1 HDMI 2.0 interface, Up to 4K 60Hz resolution – 1 2.5G network interface – 3 audio interfaces (audio input/audio output/microphone) Onboard device interface: – 1 CPU fan pin – 3 system fan pins – 1 water-cooled pump pin – 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces – 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces – 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface – 2 5V 3-pin ARGB pins – 2 12V 4-pin RGB pins – 1 Front audio pin – 1 Front panel pin – 1 speaker pin – 1 clear CMOS jumper – 1 serial port pin – 1 BIOS burner pin – 1 diagnostic card pin – 1 ME write protection jumper – 1 RGB lamp efficiency control jumper |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
