Key Features
- MPN: TUF-RTX5090-O32G-GAMING

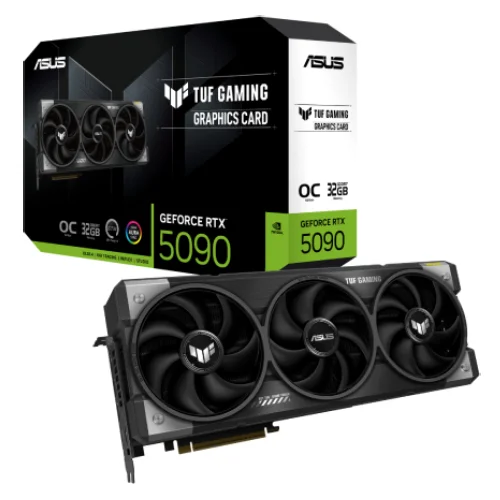

- Model: TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition
- Video Memory: 32GB GDDR7, CUDA Core: 21760
- Memory Speed: 28 Gbps, Memory Interface: 512-bit
- Engine Clock: 2550 MHz(Boost clock), OC Mode: 2580 MHz
- Output Ports: 2x Native HDMI 2.1b, 3x Native DisplayPort 2.1a
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 32GB | |
| Resolution | Digital Max Resolution 7680 x 4320 | |
| Core Clock | Engine Clock: OC mode: 2580 MHz Default mode: 2550 MHz(Boost clock) |
|
| Memory Clock | 28 Gbps | |
| BUS Type | PCI Express 5.0 | |
| Memory Interface | 512-bit | |
| CUDA Cores | 21760 | |
| Interface | ||
| Display Port | 3x Native DisplayPort 2.1a | |
| HDMI | 2x Native HDMI 2.1b | |
| HDCP | HDCP 2.3 | |
| Power Specifications | ||
| Connectors | 1 x 16-pin | |
| Recommended PSU | 1000W | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 348 x 146 x 72 mm 13.7 x 5.7 x 2.8 inch |
|
| Others | 3.6 Slot | |
| Warranty | ||
| Manufacturing Warranty | 3 years Warranty | |
