Key Features

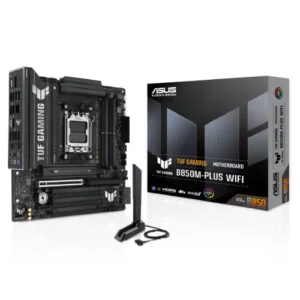

- Model: TUF GAMING B850M-PLUS WIFI
- Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
- Supported RAM: 4x DDR5, up to 256GB, 8000+ MT/s (OC)
- Graphics Output: 1x HDMI, 1x Display Port
- Features: Realtek 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3
Specification
| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B850 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC | |
| Expansion Slots | ||
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x1 slot |
|
| M.2 Socket | 3 x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort | |
| USB (s) | Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A. |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Wireless Communication module | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3 |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
|
| RAID | AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 |
|
| Audio | 5 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header |
|
| Others | ||
| Special Features | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool – Pre-mounted I/O shield – SafeDIMM Aura Sync – Addressable Gen2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
