Key Features

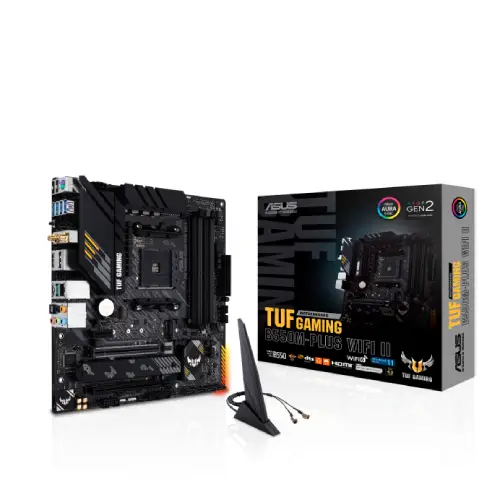

- Model: TUF GAMING B550M Plus WIFI II
- Supported CPU: Ryzen 5000/ 5000 G/ 4000 G/ 3000 Series Processors
- Supported RAM: 4 x DIMM, Max. 128GB, DDR4
- Graphics Output: 1 x Display Port, 1 x HDMI
- Features: Wi-Fi 6, Realtek 2.5Gb Ethernet
Specification
| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | B550 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode)* AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot Support PCIe bifurcation for RAID on CPU function. PCIEX16_2 will run x2 mode when the PCIEX1 slot is used. |
|
| M.2 Socket | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/ 4333(OC)/4266(OC)/ 4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/ 3000/ 2933/ 2800/2666/2400/ 2133, Un-buffered Memory | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1(4K@60HZ) | |
| Display Port (s) | 1 x DisplayPort 1.2 | |
| USB (s) | Rear USB:Total 8 ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | TUF LANGuard | |
| Wireless Communication module | 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2 | |
| Supported Storage | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header 1 x 10-1 pin System Panel header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS TUF PROTECTION – DIGI+ VRM (Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – ProCool AURA Sync – AURA RGB headers – Addressable Gen 2 header |
|
| Bundled Software | ASUS Exclusive Software Armory Crate – Aura Creator – Aura Sync – Two-Way AI Noise Cancelation AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ – EZ update TUF GAMING CPU-Z AI Charger DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
