Key Features

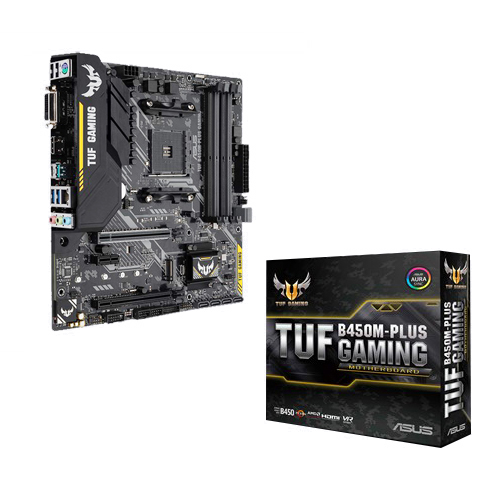

- Model: Asus TUF B450M-PLUS Gaming
- AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen
- Military-grade TUF components
- TUF Protection with SafeSlot
- ASUS exclusive Aura Sync RGB lighting
Specification
| Basic Information | ||
| Supported CPU | AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors | |
| Chipset | AMD B450 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile,ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control,F4 AURA ON/OFF,F9 Search | |
| Form Factor | mATX | |
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 mode, x8 mode, max at x4 mode), 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1 | |
| M.2 Socket | 1 x M.2 Socket 3 (type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | 3466(O.3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHzC.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz | |
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports – Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| DVI-D (s) | 1 x DVI-D | |
| USB (s) | 1 x USB3.1 Gen 1 Type-C, 1 x USB3.1 Gen 2, 4 x USB3.1 Gen 1 | |
| LAN Port (s) | Realtek RTL8111H TUF LAN Guard |
|
| Supported Storage | AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : – 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 AMD Athlon with Radeon Vega Graphics Processors : – 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1 AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen st Generation Processors : – 2 x SATA 6Gb/s port(s) AMD B450 chipset : – 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
|
| Audio | Realtek ALC887-VD2 8-Channel High Definition Audio CODEC | |
| Internal I/O Ports | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |
