Key Features
- MPN: ROG-STRIX-RTX5070TI-O16G-GAMING

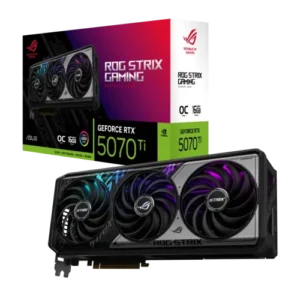

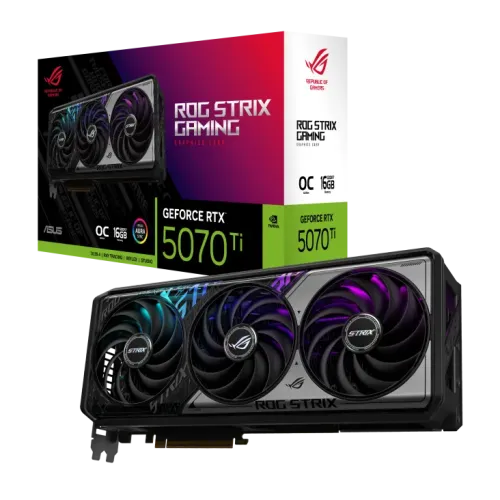

- Model: ROG Strix GeForce RTX 5070 Ti 16GB GDDR7 OC Edition
- Engine Clock: 2602MHz (Boost Clock), 2625MHz (OC Mode)
- Memory: 16GB GDDR7
- CUDA Core: 8960
- Output: 2x HDMI 2.1b, 3x DisplayPort 2.1a
Specification
| Video Memory Specifications | ||
| Type | GDDR7 | |
| Size | 16GB | |
| Resolution | 7680 x 4320 | |
| Core Clock | OC mode: 2625MHz Default mode: 2602MHz (Boost Clock) |
|
| Memory Clock | 28 Gbps | |
| BUS Type | PCI Express 5.0 | |
| Memory Interface | 256-bit | |
| CUDA Cores | 8960 | |
| Others | AURA SYNC: ARGB | |
| Interface | ||
| Display Port | 3 x Native DisplayPort 2.1b | |
| HDMI | 2 x Native HDMI 2.1b | |
| HDCP | HDCP 2.3 | |
| Power Specifications | ||
| Connectors | 1 x 16-pin | |
| Recommended PSU | 850W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| Physical Specifications | ||
| Dimensions | 332 x 147.3 x 64 mm 13.07 x 5.79 x 2.519 inch |
|
| Others | 3.2 Slot | |
| Warranty | ||
| Manufacturing Warranty | 03-years Warranty | |
