Key Features

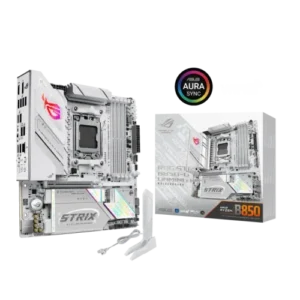

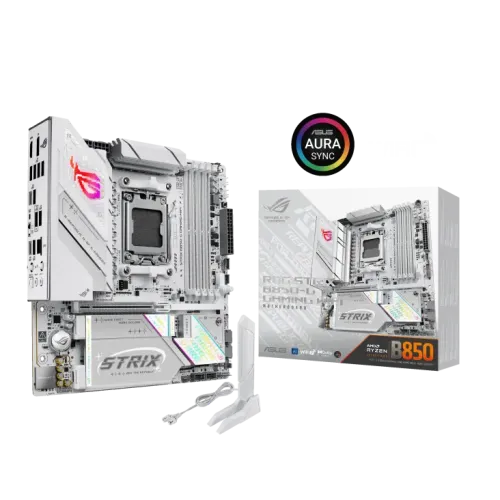

- Model: ROG STRIX B850-G GAMING WIFI
- Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
- Supported RAM: 4x DDR5, up to 256GB, 8000+ MT/s (OC)
- Graphics Output: 1x HDMI, 1x Display Port
- Features: Intel2.5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4
Specification
| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B850 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports PCIe 4.0 x8/x4 mode) *Specifications vary by CPU types. |
|
| M.2 Socket | 4 x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Supports up to 8000+MT/s (OC) with Ryzen™ Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort* 1 x HDMI™ port** – Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. * Supports max. 8K@30Hz as specified in DisplayPort 1.4 ** Supports 4K@60Hz as specified in HDMI 2.1 *** VGA resolution support depends on processors’ or graphic cards’ resolution. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (1 x USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports *USB Type-C power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Bluetooth Wi-Fi 7 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 |
|
| Supported Storage | Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset 2 x SATA 6Gb/s ports |
|
| RAID | AMD RAIDXpert2 Technology* Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 *Specifications vary by CPU types. |
|
| Audio | 2 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header |
|
| Others | ||
| Special Features | Extreme Engine Digi+ – 5K metallic capacitors ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – PCIe Slot Q-Release – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – ProCool – Pre-mounted I/O shield – SafeSlot Aura Sync – Addressable RGB Gen2 headers |
|
| Bundled Software | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – GameFirst ASUS AI Advisor ASUS DriverHub – AIDA64 Extreme (60 days free trial) – HWiNFO ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide AI Cache Boost ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
