Key Features

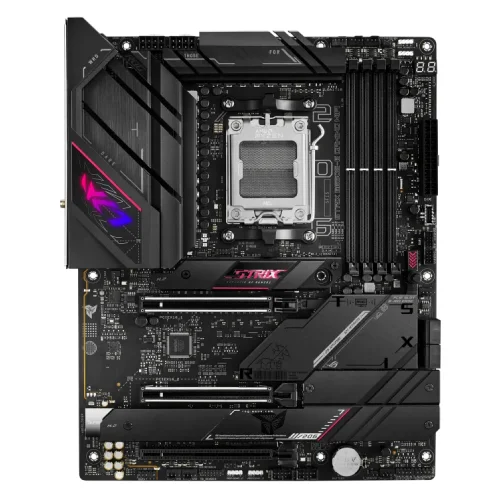

- Model: ROG STRIX B650E-E GAMING WIFI
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported Memory: 4 x DIMM 8000+ (OC), Max. 192GB DDR5
- Supports: 4 x M.2, Graphics Output: 1x HDMI, 1x DP
- Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6E
Specification
| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B650 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | 5 x Audio jacks | |
| Expansion Slots | ||
| PCI | AMD Ryzen™ Desktop Processors* 2 x PCIe 5.0 x16 slots (supports x16 & x8/x4 modes) AMD B650 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) |
|
| M.2 Socket | Total supports 4 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
|
| Maximum Memory | Max. 192GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort | |
| USB (s) | Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 |
|
| Supported Storage | Total supports 4 x M.2 slots* and 4 x SATA 6Gb/s ports AMD Ryzen™ Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) ASMedia ASM1061 Controller** |
|
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10. RAID configuration is not supported on the SATA6G_E1-4 ports. |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback” Audio Features – Audio Shielding – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |
|
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports |
|
| Others | ||
| Special Features | Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsinks – M.2 heatsink backplate – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Aura RGB header – Addressable Gen 2 headers |
|
| Bundled Software | ROG Exclusive Software – GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound – Anti-virus software ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – Aura Creator – Aura Sync – Fan Xpert 4 – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 TPU DIGI+ VRM Turbo app PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode Dynamic OC Switcher FlexKey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
