Key Features

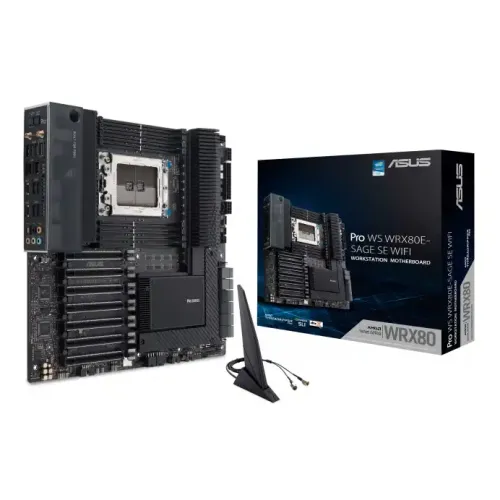

- Model: Pro WS WRX80E-SAGE SE WIFI
- Supported CPU: Threadripper PRO Series Processors for sWRX8 Socket
- Supported RAM: 8x DIMM, Max. 2048GB, DDR4 3200MHz
- 8 x SATA III, 3 x M.2, 2 x U.2
- Wi-Fi 6, Bluetooth v5.2
Specification
| Basic Information | ||
| Supported CPU | AMD Socket sWRX8 for AMD Ryzen Threadripper PRO Series Processors | |
| Chipset | AMD WRX80 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | EATX(EEB) Form Factor 12.2 inch x 13 inch ( 30.98 cm x 33.02 cm ) |
|
| Audio | Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 8 x DIMM | |
| Supported Memory | 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, 3DS R-DIMM and LR-DIMM Memory 8 Channel Memory Architecture |
|
| Maximum Memory | 2048GB | |
| Graphics | ||
| Graphics | Supports NVIDIA 4-Way/3-Way/2-Way SLI Technology | |
| Connector & Ports | ||
| USB (s) | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C) Front USB (Total 7 ports) |
|
| LAN Port (s) | 1 x Intel X550-AT2 dual 10Gb Ethernet | |
| Wireless Communication module | Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
|
| Supported Storage | Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen Threadripper PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices* AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices* 4 x SATA 6Gb/s ports ASMedia ASM1061 Controller 4 x SATA 6Gb/s ports |
|
| RAID | Supports NVMe RAID configurations via M.2 storages | |
| Audio | 5 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 6 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x Chipset Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 2 x 6-pin PCIe Graphics Card connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 8 x SATA 6Gb/s ports 2 x U.2 slots USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports BMC Related 1 x BMC switch 1 x IPMI switch 1 x Messange LED header 1 x Micro SD card socket 2 x LAN LED header(s) 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header 1 x VPP_I2C header Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header |
|
| Others | ||
| Special Features | ASUS Q-Design – Q-Code – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – ProCool II – Pre-mounted I/O shield – SafeSlot Bespoke Motherboard Design & Business Focused Features – Event Log in ASMB9-iKVM – 24/7 Reliability – Overcurrent Protection ASMB9-iKVM for KVM-over-Internet |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate ASUS CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS:X® Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
