Key Features

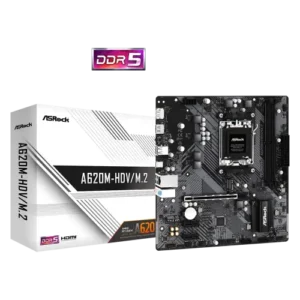

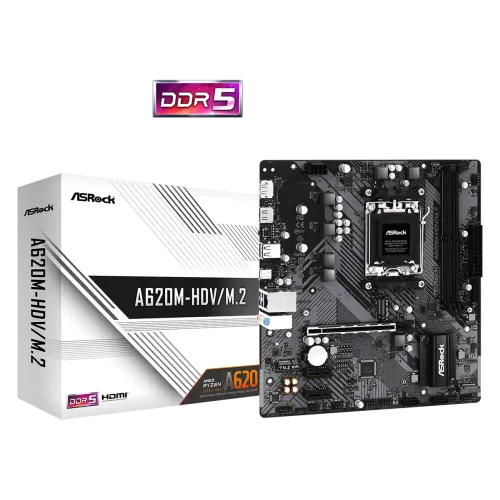

- Model: A620M-HDV/M.2
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, 6400+(OC), Max 128GB
- Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
- Features: Gigabit LAN 10/100/1000 Mb/s
Specification
| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD A620 | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm 2oz Copper PCB |
|
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| M.2 Socket | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* |
|
| Memory | ||
| Type | Dual Channel DDR5 Memory Technology | |
| Slots | 2 x DDR5 DIMM Slots | |
| Supported Memory | Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Max Shared Memory | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) | |
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| Display Port (s) | 1 x DisplayPort 1.4 | |
| USB (s) | 1 x USB 3.2 Gen1 Type-C (Rear) 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) |
|
| LAN Port (s) | 1 x RJ-45 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H |
|
| Supported Storage | – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) – Supports NVMe SSD as boot disks |
|
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | – 2 x Antenna Mounting Points – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 2 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone – 1 x Power LED and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
|
| Others | ||
| Special Features | Software – ASRock Motherboard Utility (A-Tuning) UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |
|
| Bundled Software | Superb Productivity – Dual Channel DDR5 Rock-Solid Durability – 4+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
