Key Features

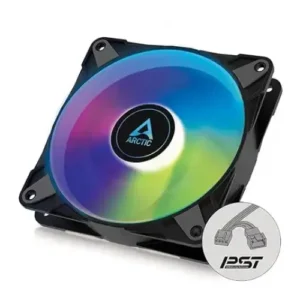

- Model: P12 PWM PST
- Fan Connector: 4-pin PWM
- Airflow: 56.30 cfm | 95.70 m³/h
- Speed: 200–1800 RPM
- Bearing: Fluid Dynamic Bearing (FDB)
Specification
| Key Features | ||
| Fan Speed | 200—1800 rpm PWM Controlled (0 rpm below 5 % PWM) | |
| Air Flow | 56.30 cfm | 95.70 m³/h | |
| Air Pressure | Static Pressure: 2.20 mmH2O | |
| Noise (dBA) | 0.3 Sone | |
| Bearing Type | Fluid Dynamic Bearing (FDB) | |
| Input Current | 0.1 A | 12 V DC, 3.9 V | |
| Physical Specification | ||
| Color | Black | |
| Size | 120 x 120 x 25mm | |
| Weight | 145 g | |
| Connector | 4-Pin PWM Connector | |
| Warranty Information | ||
| Manufacturing Warranty | 06-year Warranty | |
