Key Features

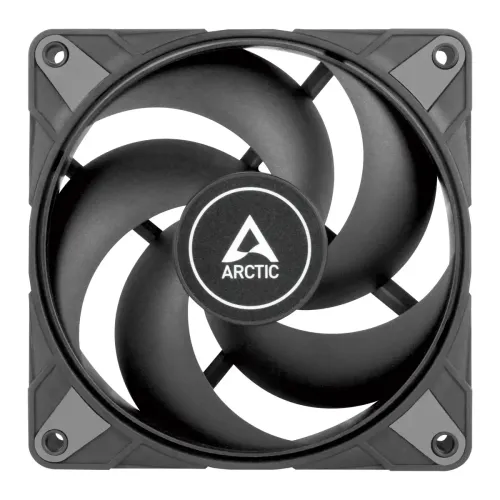

- Model: P12 Max
- Fan Connector: 4-pin PWM
- Airflow: 81.04cfm | 137.69m³/h
- Speed: 200–3300 RPM
- Bearing: Fluid Dynamic Bearing (FDB)
Specification
| Key Features | ||
| Fan Speed | 200–3300 rpm (PWM controlled), 0 rpm below 5 % PWM | |
| Air Flow | 81.04cfm | 137.69m³/h | |
| Air Pressure | Static Pressure: 4.35 mmH2O | |
| Noise (dBA) | 0.6 Sone | |
| Bearing Type | Fluid Dynamic Bearing (FDB) | |
| Input Current | 12V DC, 0.29 A | |
| Physical Specification | ||
| Color | Black | |
| Materials | Plastic, Rubber, PCB | |
| Size | 120 x 120 x 25mm | |
| Weight | 184 g | |
| Connector | 4-Pin PWM Connector | |
| Warranty Information | ||
| Manufacturing Warranty | 06-year Warranty | |
