Key Features

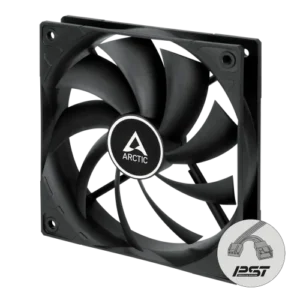

- Model: F12 PWM PST
- Fan Connector: 4-Pin + 4-Pin Socket
- Airflow: 53 cfm | 90.1 m³/h
- Speed: 230-1350 rpm
- Bearing: Fluid Dynamic Bearing (FDB)
Specification
| Key Features | ||
| Fan Speed | 230-1350 rpm | |
| Air Flow | 53 cfm | 90.1 m³/h | |
| Air Pressure | Static Pressure: 1 mmH2O | |
| Noise (dBA) | 0.3 Sone | |
| Bearing Type | Fluid Dynamic Bearing (FDB) | |
| Input Current | 0.12 A | |
| Operating Voltage/Power Range | 12 V DC | |
| Physical Specification | ||
| Color | Black | |
| Size | 120 x 120 x 25mm | |
| Weight | 109 g | |
| Connector | 4-Pin Connector + 4-Pin Socket | |
| Others | ||
| Others | Operating Ambient Temperature: 0-40 °C Typical Voltage: 12 V DC Starting Voltage: 6 V Control Type: PWM PST Cable Length: 400 mm |
|
| Warranty Information | ||
| Manufacturing Warranty | 06-year Warranty | |
