Key Features

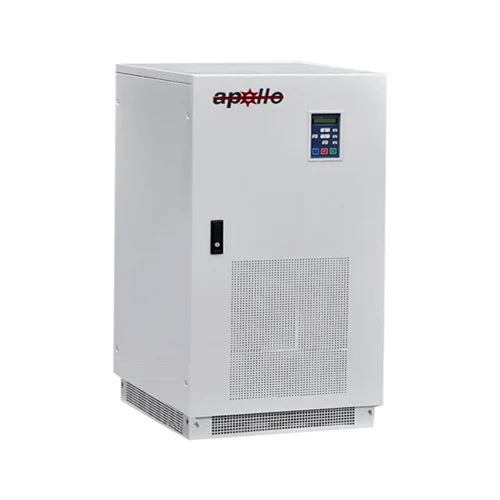

- Model: 3P20K-L
- Capacity: 20kVA / 18 KW
- Input Voltage: 380/400/415Vac
- Output Voltage: 200/220/230Vac
- Short Circuit, Overload and Overcharge Protection
Specification
| Main Feature | ||
| Capacity | 20KVA | |
| Display Type | LED | |
| Load Capacity | 18 KW | |
| Input Voltage | 380/400/415Vac (380-25% 415+20%), (3Ph+N+PE) | |
| Output Voltage | 200/220/230Vac (± 1%) | |
| Noise Level | <60dB | |
| Others | Protection: Overload, Battery, Short circuit, Over temperature, EMI filter Operating temperature 0~40°C Storage temperature -25°C ~ 55°C (non ─ condensing) Humidity range <1500m Transfer time Oms (Line mode ↔ Battery mode) Overload 110% / 60min, 125% / 10min, 150% / 1min LED display Input, Inverter, Bypass, Battery, Output, Status |
|
| Input Features | ||
| Frequency | 50/60Hz (±5Hz) | |
| Power Factor | >0.9(with filter) | |
| Output Features | ||
| Voltage Range | 200/220/230Vac (± 1%) | |
| Power Factor | >89% | |
| Transfer Time | 0ms | |
| Physical Specification | ||
| Dimension | 570 x 800 x 1195mm | |
| Manufacture Warranty | ||
| Warranty | 1 Year (Box Mandatory While Claiming) | |
