Key Features

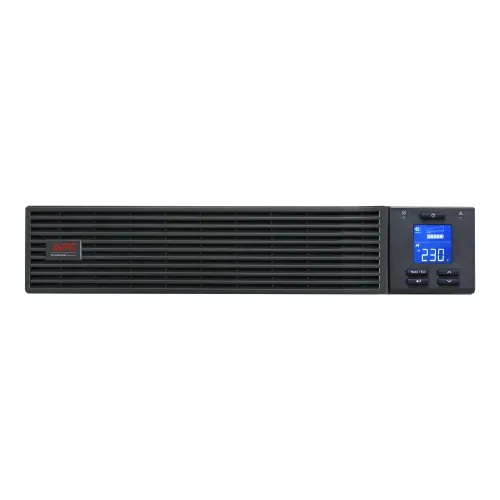

- Model: SRV3KUXI-IN
- Power Output Capacity: 3KVA/ 2400W
- UPS Type: Double Conversion Online
- Output Connector Type: Hard wire 3-wire (H N + E) 1
- Battery Type: External battery system
Specification
| Main Feature | ||
| Capacity | 3000 VA | |
| Display Type | LCD Display | |
| Load Capacity | 2400 W | |
| Input Voltage | 230 V | |
| Output Voltage | Output frequency: 50/60 Hz +/- 3 Hz sync to mains 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised Wave type: Sine wave Output harmonic distortion: < 3% linear load Efficiency: 93 % (full load) 92.3 % (half load) Transfer time: 4 ms typical Harmonic distortion: Less than 3 % Crest factor: 3 : 1 |
|
| Noise Level | 50 dBA | |
| Battery | Battery type: External battery system | |
| Others | Built-in static bypass IP20 IP degree of protection |
|
| Input Features | ||
| Frequency | 40…70 Hz | |
| Voltage Range | 160…285 V | |
| Physical Specification | ||
| Dimension | Height: 24 cm Width: 70 cm Depth: 54.5 cm |
|
| Weight | 13.7 kg | |
| Manufacture Warranty | ||
| Warranty | 1 Year | |
