Key Features

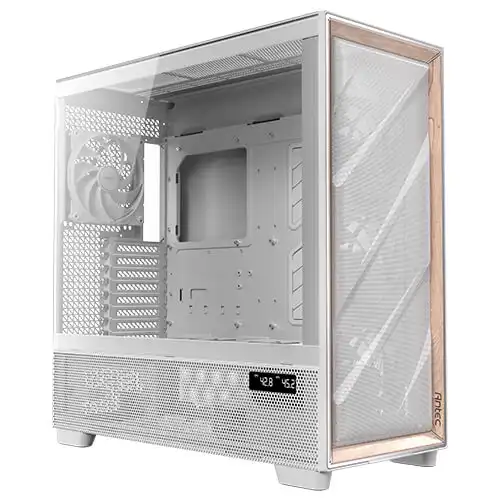

- Model: FLUX PRO White
- Mainboard Support: E-ATX (≤285mm), ATX, Micro-ATX, ITX
- Side Panel: 4mm Tempered Glass, Support Vertical GPU
- Pre-Installed Fans: 6 x Fans, CPU/GPU Dual Temperature Display
- Innovative iShift PSU 90° Mount, Premium Wood Design
Specification
| Case Type | ||
| Type | Full Tower | |
| Front Panel | Tempered Glass | |
| Tempered Glass Panel | 4mm Tempered Glass | |
| Motherboard Support | E-ATX (≤285mm), ATX, Micro-ATX, ITX | |
| External Features | ||
| Color(s) | White | |
| Material | Steel + Plastic + Glass + Wood | |
| Weight | 13.60 Kg | |
| Dimensions | 530 x 245 x 545 mm (DWH) | |
| Expansion Slots | 8 | |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360 / 420mm Top: 120 / 140 / 240 / 280 / 360 / 420mm Power Supply Shroud: 120 / 240 / 360mm Bottom: 120 / 240mm Rear: 120 / 140mm |
|
| Fan Support | Front: 3 x 120mm / 3 x 140mm Top: 3 x 120mm / 3 x 140mm Power Supply Shroud: 3 x 120mm Bottom: 2 x 120mm / 2 x 140mm Rear: 1 x 120mm / 1 x 140mm |
|
| Pre- Installed Fans | 3 x 140mm Tranquil PWM fans in front 2 x 120mm P12R PWM reverse fans on PSU shroud 1 x 140mm Tranquil PWM fan in rear |
|
| Drive Bays | 3.5″ /2.5″x 4/4 2.5″x 2 |
|
| I/O Port | Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack, Temp. Display Switch x 1 | |
| Additional Feature | ||
| PSU | Not Included | |
| Side Panel | Tempered glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | ≤ 190mm | |
| Maximum Graphics Card Length | ≤ 455mm | |
| Maximum PSU Length | (Include cable) ≤ 180 / 300mm (with HDD) (Include cable) ≤ 470mm (without HDD) (Not Include cable) ≤ 180mm (Side Mount) |
|
| Warranty | ||
| Warranty | No Warranty | |
