Key Features

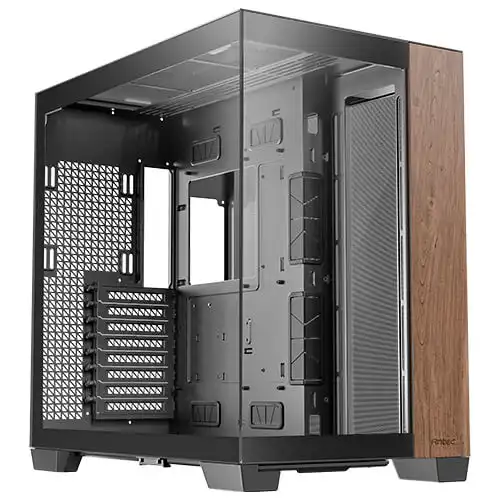

- Model: C8 Wood Constellation Series
- Mainboard Support: E-ATX (280mm), ATX, M-ATX, ITX
- Side Panel: 4mm Tempered Glass, 0.8mm + 1.0mm thick steel
- Supports up to 6 drives: 2 x 3.5″ HDD & 4 x 2.5″ SSD
- Mainstream Type-C (10Gbps) Port for High-Speed
Specification
| Case Type | ||
| Type | Full Tower | |
| Front Panel | Tempered Glass | |
| Tempered Glass Panel | 4mm Tempered Glass | |
| Motherboard Support | E-ATX (280mm), ATX, M-ATX, ITX | |
| External Features | ||
| Color(s) | Black | |
| Material | Steel + Plastic + Glass + Wood | |
| Weight | 10.48kg | |
| Dimensions | 464 x 303 x 476mm (DWH) | |
| Front Ports | Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack | |
| Expansion Slots | 8 | |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360mm Side: 120 / 140 / 240 / 280 / 360mm Bottom: 120 / 140 / 240 / 280 / 360mm Rear: 120mm |
|
| Fan Support | Top: 3 x 120 / 3 x 140 / 2 x 160mm Side: 3 x 120 / 2 x 140mm Bottom: 3 x 120 / 3 x 140 / 2 x 160mm Rear: 120 / 140mm |
|
| Drive Bays | 3.5″ /2.5″: 2/0 2.5″: 4 |
|
| Additional Feature | ||
| Cooling System | Dual Chamber Airflow | |
| PSU | Not Included | |
| Side Panel | Tempered glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | ≤ 175mm | |
| Maximum Graphics Card Length | ≤ 440mm | |
| Maximum PSU Length | ≤ 210mm (without cable) | |
| Warranty | ||
| Warranty | No Warranty | |
