Key Features

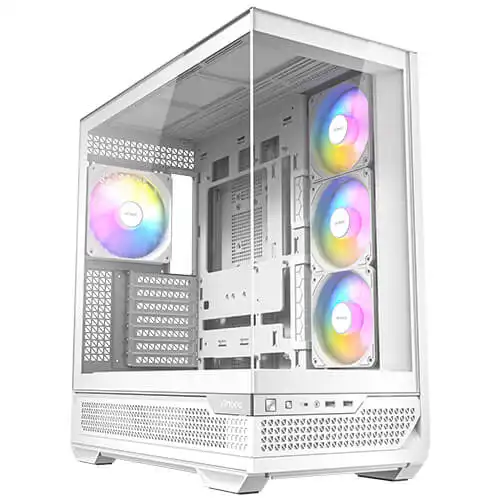

- Model: C7 WHITE ARGB CONSTELLATION SERIES
- Motherboard Support: E-ATX (≤ 272mm), ATX, M-ATX, ITX
- Pre-Install Fans: 4x 120mm ARGB PWM Fans
- SCI-FI Design with Panoramic 270° View
- Support Back-Connect BTF Motherboards
Specification
| Case Type | ||
| Type | Mid Tower | |
| Front Panel | Tempered Glass | |
| Tempered Glass Panel | 4mm Tempered Glass | |
| Motherboard Support | E-ATX (≤ 272mm), ATX, M-ATX, ITX | |
| External Features | ||
| Color(s) | White | |
| Material | Steel + Plastic + Glass | |
| Weight | 11.7Kg | |
| Dimensions | 485 x 241 x 504mm(DWH) | |
| Expansion Slots | 7 | |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360mm Side: 120 / 240 / 360mm Rear: 120 / 140mm |
|
| Fan Support | Top: 3 x 120 / 2 x 140mm Side: 3 x 120mm Power Supply Shroud: 3 x 120mm Rear: 1 x 120 / 1 x 140mm |
|
| Pre- Installed Fans | 3 x 120mm ARGB PWM reverse fans on right side 1 x 140mm ARGB PWM fan in rear |
|
| Drive Bays | 3.5″ / 2.5″: Normal M/B: 3/3 M-ATX Back Connect: 3/3 ATX Back Connect: 2/2 2.5″: Normal M/B: 2 M-ATX Back Connect: 1 ATX Back Connect: 1 |
|
| I/O Port | Power, LED Control Button, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack | |
| Others | Dust Filter: Front / Left Side / Bottom | |
| Additional Feature | ||
| Cooling System | MULTI-DIRECTIONAL AIR INTAKE AND MASSIVE AIRFLOW | |
| PSU | Not Included | |
| Side Panel | Tempered glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | ≤ 180mm | |
| Maximum Graphics Card Length | ≤ 450mm (When overall AIO thickness > 52mm, the length of the graphics card is limited to 280mm.) |
|
| Maximum PSU Length | (Include cable) ≤ 210mm | |
| Warranty | ||
| Warranty | No Warranty | |
