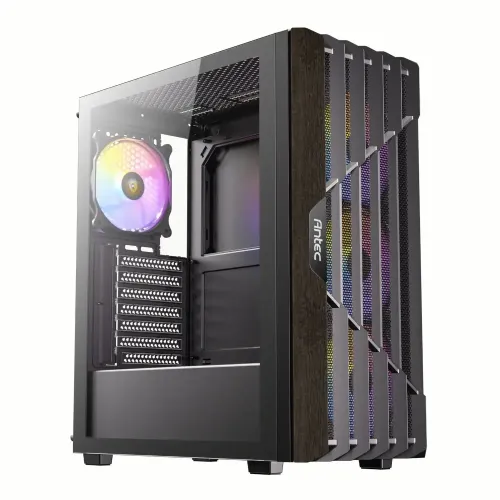

Key Features
- Model: AX63
- Mainboard Support: ATX, Micro-ATX, ITX
- Form Factor: Mid Tower
- Side Panel: 4MM Tempered Glass
- 4 x 120mm ARGB fans pre-installed
Specification
| Case Type | ||
| Type | Mid Tower | |
| Tempered Glass Panel | Yes, 4 mm | |
| Motherboard Support | ATX, Micro-ATX, ITX | |
| External Features | ||
| Color(s) | Black | |
| Material | Steel + Plastic | |
| Weight | 4910g | |
| Dimensions | 40.5 x 19.5 x 44.9 cm | |
| Front Ports | Power, LED control button, USB 2.0 x 1, USB 3.0 x 2, MIC x 1, HD-Audio x 1 | |
| Expansion Slots | 7 | |
| Radiator Support | Front: 120 / 240 / 360mm | |
| Fan Support | Front: 3 x 120mm Top: 2 x 120mm Power Supply Shroud: 2 x 120mm Rear: 1 x 120mm |
|
| Pre- Installed Fans | 3 x 120mm ARGB fans in front + 1 x 120mm ARGB fan in rear | |
| Drive Bays | 3.5″ /2.5″: 2/1 2.5″: 2 |
|
| Additional Feature | ||
| Side Panel | 4MM Tempered glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | ≤ 160mm | |
| Maximum Graphics Card Length | ≤ 320mm | |
| Maximum PSU Length | ≤ 170mm(with HDD) ≤ 345mm(without HDD) |
|
| Warranty | ||
| Warranty | No Warranty | |
