Key Features
- MPN: HA-1300BA3

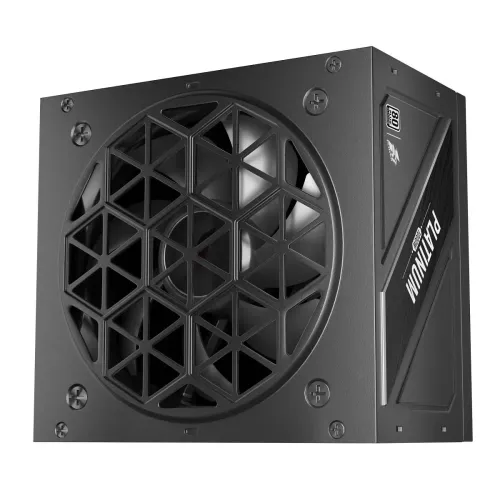

- Model: NGDP ATX 3.1 PLATINUM
- ATX 3.1 and PCIe 5.1 Compatibility
- Output Capacity: 1300 Watts
- Certifications: 80 PLUS PLATINUM
- Full Japanese Electrolytic Capacitors
Specification
| Key Features | ||
| Efficiency (Approx.) | 90.62 % at full load | |
| Certification | 80 PLUS Platinum | |
| Fan Size | 120 mm FDB | |
| Others | PFC: Active PFC PROTECTIONS: UVP, OVP, OPP, SCP, OCP, OTP PROTECTION TEMPERATURE: 0 – 40℃ MTBF: 100,000 hours CIRCUIT STRUCTURE: LLC + DC-DC REGULATORY: CE / FCC / C-Tik / ROHS / CCC / cTUVus / IEC / EAC DIMENSIONS (L x W x H): 140 x 150 x 86 mm |
|
| Input | ||
| Voltage | 100 – 240 Vac | |
| Frequency Range | 50-60Hz | |
| Current | 15 – 7.5A | |
| Output | ||
| Modular Type | Full Modular | |
| Total Power | 1300W | |
| Warranty Information | ||
| Manufacturing Warranty | 10 years | |
